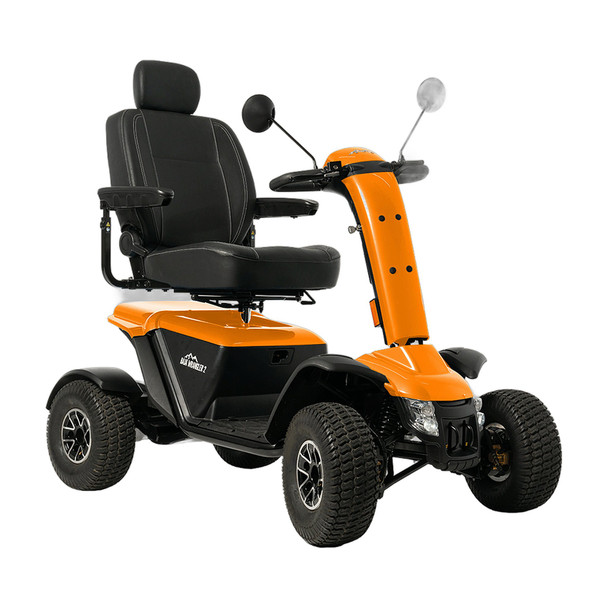

The Pride Baja Wrangler 2 (BA401) is a full-size recreational outdoor scooter for trails, property, and terrain where a sidewalk scooter runs out of clearance. Dual 24V motors, CTS front-and-rear suspension, and 14.5" tubeless pneumatic tires push a 450 lb capacity up to 11.5 mph, with mid-frame ground clearance up to 8.25". The standard 75Ah battery covers 16.5 miles per charge, and the optional 100Ah battery extends that to 21.4 miles. Orange Crush, Green Machine, True Blue, White Camo, Midnight Camo, and Desert Camo keep it looking trail-ready, not clinical.
Rated for 450 lbs. Includes the rider and anything carried.
Longer outdoor rides. 16.5 mi per charge; 11.5 mph top speed.
Rougher outdoor paths. 14.5" pneumatic tires and CTS Suspension.
Garage or ramp storage. Does not come apart; plan where it will park.
- 450 lbs. weight capacity. Includes the rider and anything carried.
- 11.5 mph top speed. For longer outdoor rides.
- Range per charge. Up to 21.4 mi (optional 100Ah battery); 16.5 mi standard.
- 94.75" turning radius. 4-wheel layout for stability.
- CTS Suspension. Front and rear.
- Hydraulic hand brake. Plus regenerative and electromechanical brakes.
- Steering dampening. Absorbs uncontrolled movement on rough ground.
- LED console. Time, temperature, miles and trips.
- Full LED lighting. Headlights, hazards, signals and rear backup sensor lights.
- USB charger in the tiller. Plus a storage compartment.
| Model / SKU | Baja Wrangler 2 / BA401 |
|---|---|
| Product type | Recreational / outdoor scooter (4-wheel, full-size) |
| Wheels | 4-wheel |
| Weight capacity | 450 lbs. |
| Top speed | 11.5 mph |
| Range (per charge) | Up to 21.4 mi (optional 100Ah battery); 16.5 mi standard |
| Turning radius | 94.75" |
| Product weight | 274 lbs. without batteries; 370 lbs. with 75Ah; 395 lbs. with 100Ah (includes standard seat) |
| Overall length / width | 61.25" L / 32.5–33" W |
| Seat | Black vinyl high-back limited-recline memory foam with sliders; 16"×16–18" or 18"×18–20" (48.6 lbs.); seat-to-deck 20.5–22"; optional larger sizes |
| Battery | (2) 12V sealed lead-acid deep-cycle 75Ah (48 lbs. each) or 100Ah (60.5 lbs. each); 8A off-board charger; 24V rear-wheel dual in-line drive |
| Ground clearance | 8.25" at mid-frame; 5.5" at motor |
| Tire size (front / rear) | 14.5" / 14.5" |
| Tire type | Tubeless pneumatic |

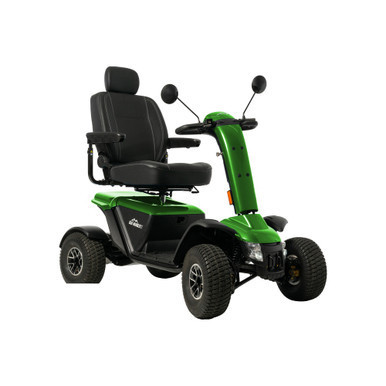

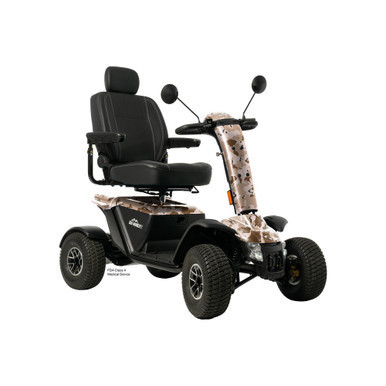

| Colors | Orange Crush, Green Machine, True Blue, White Camo, Midnight Camo, Desert Camo |
Baja (Pride Mobility) warranty: Lifetime limited on frame; 2-year limited on electronics; 2-year limited on drivetrain; 6-month limited on batteries.
